NWN-S series Full- Stainless Steel Closed Type Cooling Tower

The NWN-S series cooling tower is a refined version of the NWN series counterflow closed cooling tower, featuring an enhanced anti-corrosion stainless steel frame structure for improved stability and extended service life；water saving and energy saving, high efficient and environmental frendly.

High-Efficiency Counter Flow Closed Circuit System

Operation
The fluid medium requiring cooling flows through the efficient serpentine coil heat exchanger, while the external spray system continuously moistens the coil surface to facilitate cooling. This allows for the exchange of heat between the cooled medium and the spray water through a partition wall heat exchanger, creating a closed loop for effective  cooling. Simultaneously, low-temperature dry air enters the tower in opposition to the spray water, with forced convection from a fan enabling counter-current heat exchange. Once fully exchanging heat, high-temperature saturated air is discharged outside of the tower, effectively reducing overall heat and lowering fluid medium temperature.

Advantage
> The counter flow close-loop circulation system guarantees the purity of the media, diminishes expenses for maintenance, and conserves precious water resources while the efficient cooling.
> Efficient year-round cooling; enables operation without the need for spray water in winter, and has the capability to replace the chiller during winter months, resulting in a significant reduction in energy consumption.
> The anti-corrosion stainless steel casing is designed to withstand a variety of harsh environments, while the self-draining stainless steel heat exchange coil allows for convenient anti-freeze protection during winter shutdowns.
> The product has a compact structure and space-saving design, allowing for the combination of multiple cooling towers, without the need for pre-cooling fillers, making it ideal for cooling higher temperature working fluids.

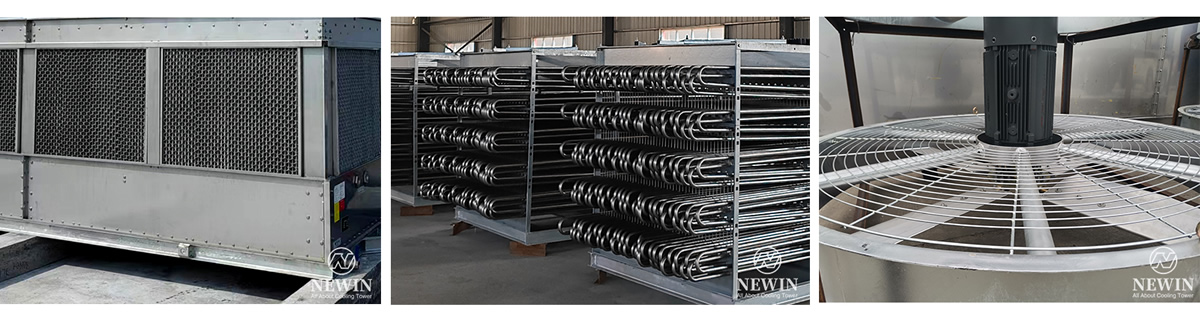

Main Parts
▷ The stainless steel frame structure and shell possess exceptional anti-corrosion properties, robust heat resistance, and an exquisite appearance. The structural panels are secured with high-quality 304 stainless steel bolts.
▷ The aluminum alloy axial flow fan is equipped with an explosion-proof motor, ensuring stable and efficient operation. The motor boasts a protection grade of IP55 and an insulation grade of F, providing enhanced safety and reliability.
▷ Stainless steel coils exhibit superior heat exchange efficiency, enhanced corrosion resistance, light weight, prolonged equipment lifespan, and are environmentally sustainable due to their recyclability.
▷ The exclusive drift eliminator designed for counter flow closed cooling towers is adept at efficiently extracting airborne water droplets, boasting minimal wind resistance and an impressive capture rate of 99.99%, thus guaranteeing optimal heat transfer performance.
▷ The air inlet grille is easily detachable, featuring a special 3D three-dimensional 45-degree ventilation channel design that enhances structural strength and wind load resistance. It also boasts anti-corrosion and anti-ultraviolet properties, reduces noise, and requires no maintenance.

Optional Various Additional Functions
Two-speed& VFD variable frequency motor/ Vibration Cut-off Switch/ Electronic descaler/ Water treatment equipment/ Anti-freeze automatic heating system/ Noise reduction upgrade/ External maintenance platform and guardrail/Installation and maintenance boom etc.

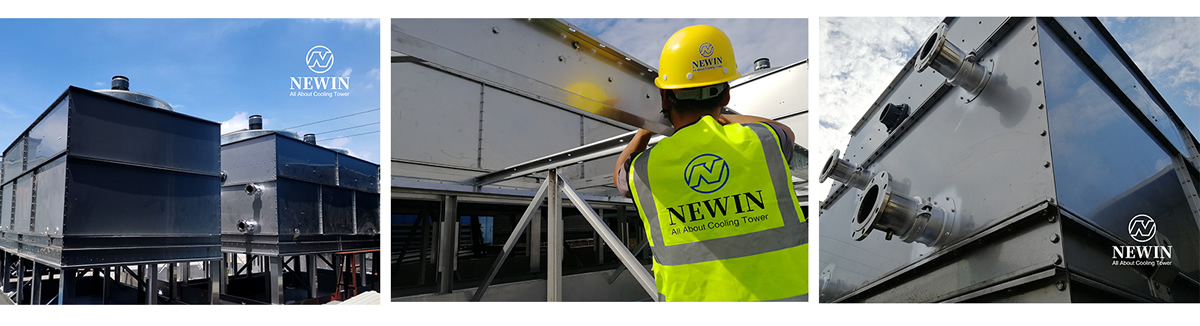

Cost-effective Anti-Corrosion Solution
NWN-Armour Anti-corrosion Technology
Products coated with NWN-Armour anti-corrosion coating exhibit outstanding resistance to corrosion, approaching the qualities of stainless steel. They serve as a cost-effective alternative to stainless steel.

Application
Energy industry • Pharmaceutical industry • HVAC • Chemical industry • Machinery manufacturing • Metal processing • Plastic products • Industrial cooling • Food processing
